Using SQL to turn all the buses around

I have a small hobby project over at kollektivkart.arktekk.no that is for visualizing changes in public transit in Norway. For some time I’ve been wanting to do some visualizations on public transit lines. For example, plot the mean delay at each stop used by a line over time.

When trying to do some concept work on this, I discovered a puzzle in the data! Many lines go in two opposite directions. Here in Trondheim, Line 3 goes from Loholt to Hallset, but also from Hallset to Loholt. The way I can tell these apart is to look up the direction in the data. Within a line, there can be variations in each direction. Some services might skip some stops, or depending on how you look at it, others visit extra stops. But these are variations on a theme, and it probably makes sense to group them together to preserve our sanity and not get 12 different plots for each line—2 should be plenty!

There’s just one problem. The direction information in the data is not stable over time. What was one day the “Inbound” direction, can suddenly become the “Outbound” direction! That’s to say, Hallset to Loholt might be Line 3 Outbound one day, then Inbound Line 3 the next. Oh no!

I didn’t just happen to know that, by the way. I made the discovery when my plots weren’t making any sense. It turns out that I had assumed that this information would be stable over time, and I didn’t check the assumption. It’s always good to write down your assumptions and verify them when working with data analysis! Saves you from having to backtrack after having done tons of confusing work.

Anyway, we have a problem in our data and want to check if we can face all the buses in the right direction again using SQL. I’ve done some setup and made the data public, so you can join in and try playing with the queries yourself. Maybe you’ll find a problem, bug or a better solution! Would love to hear from you at the repository if you do!

Some setup is necessary. This is a jupyter notebook that is available here. It should run just fine if you install jupyter, duckdb, pyarrow and seaborn. You could use uv. You should get everything you need with this command:

uv run --with jupyter --with duckdb --with seaborn --with jupysql jupyter lab

We’ll be using data from Entur. This contains data for many years for all bus lanes in the Trondheim region (and many others). I’ve got a copy of this data going back to 2023 on my machine. But that’s a lot more than we need for this exercise, so I’ve done some preparation and made a smaller download we can use. I’ve collected the ATB (my regional public transit) data for 2024 on this address (~900MB download).

I’ve done a bunch of cleanups on this data, like removing all the buses that were travelling exceedingly close to the speed of light. I’ve also connected each stop registration in the bus journey with the following stop registration, so we can look at driving durations on individual legs. The code for that is open source.

We’ll be using jupysql within this notebook, allowing us to use %sql in front of a line to send it to DuckDB, or %%sql to send an entire cell to DuckDB. We’ll do some plots with seaborn. Let’s load some data and get started!

import duckdb
import seaborn as sns
# Set up some styling for the visual stuff
sns.set_theme(
    style='whitegrid', rc={
        'figure.figsize': (12, 8),
        'figure.frameon': False,
        'legend.frameon': False
    }
)

db = duckdb.connect(':memory:')
dataset_url = "https://kaaveland-bus-eta-data.hel1.your-objectstorage.com/atb_legs.parquet"

%load_ext sql
%config SqlMagic.displaylimit=50
%sql db --alias duckdb
%sql set memory_limit='16GB';
%sql set threads=8;
%sql create or replace table legs as from read_parquet('{{ dataset_url }}')

We’ve got some 36 million rows in memory now. Let’s start by looking at the schema we have:

%sql describe legs;

For now, these are the most interesting columns for us to focus on:

• lineRef is an identifier for a line.
• directionRef indicates which direction that this particular journey travels in.
• serviceJourneyId is an ID of a trip. With operatingDate, it uniquely identifies a journey.
• sequenceNr is a monotonically increasing number that increases at each stop point in the journey. Ours starts at 2, because we use the sequenceNr for the to_stop of a leg.
• from_stop and to_stop are two subsequent stop points in a journey.

In theory, we can use lineRef and directionRef to identify the route of the journey. But I’ve been claiming that there’s a problem with directionRef.

Houston, what exactly is the problem?

I mentioned that I got some unexpected results when analyzing lines. I did a little bit of digging, and identified that the meaning of directionRef is not stable over time. Let’s take a look at what that means. The lineRef where I first identified this problem is 'ATB:Line:2_3', one of the lines that I frequently use to/from town. This should have 2 different directions. Let’s check:

%%sql
from legs
select count(*) as count, directionRef
where lineRef = 'ATB:Line:2_3'
group by directionRef
order by count desc;

At first glance, this looks fine. The data is about evenly distributed, as we’d expect. To illustrate the problem, let’s look at a leg on this line. Line 3 goes from Nidarosdomen to Studentersamfundet heading one way, and from Studentersamfundet to Nidarosdomen heading in the opposite direction. Let’s check which direction is which:

df = db.sql("""
from legs
select count(*) as count, directionRef, date_trunc('month', operatingDate) as month
where
  -- This selects for a single directionRef, right? Right?
  from_stop = 'Studentersamfundet' and to_stop = 'Nidarosdomen'
  and lineRef = 'ATB:Line:2_3'
group by all
order by month;
""").df()

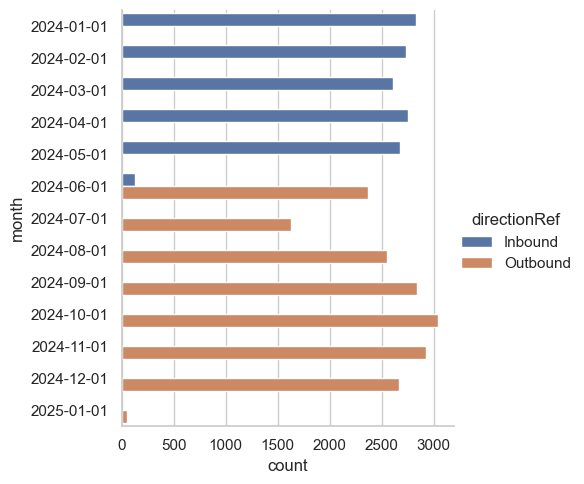

sns.catplot(df, y='month', x='count', hue='directionRef', kind='bar');

Did you see that? They just turned the directions around! It’s easy to miss this kind of thing, but it happens all the time. Gathering data from the physical world is complex and difficult!

If we aggregate based on this, the meaning changes some time in the start of summer 2024. Using this for aggregations won’t make much sense. It’ll be like aggregating the phone book. We’ll get numbers, but will anyone pick up?

So, we need to find a way to fix this. Let’s zoom in a little bit on June 2024:

df = db.sql("""
from legs
select count(*) as count, directionRef, operatingDate
-- For me, this is _to_ town
where
  from_stop = 'Studentersamfundet'
  and to_stop = 'Nidarosdomen'
  and lineRef = 'ATB:Line:2_3'
  and operatingDate between '2024-06-01' and '2024-06-10'
group by all
order by operatingDate;
""").df()

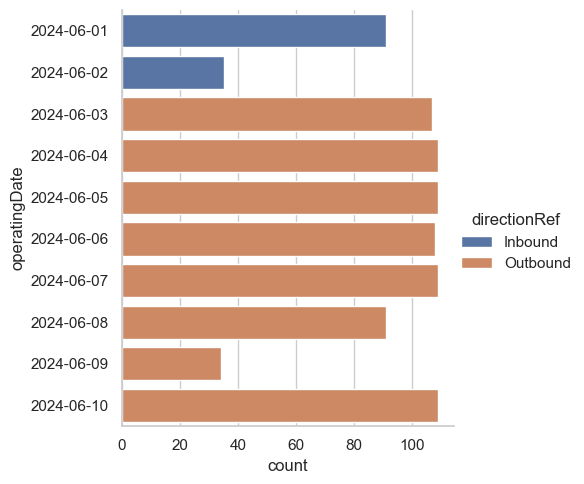

sns.catplot(df, y='operatingDate', x='count', hue='directionRef', kind='bar');

We can probably assume that directionRef is consistent within one day. This means that if we could build a mapping from lineRef, operatingDate to some “canonical” direction, we can handle this issue. That’s great news! Building that mapping is the topic of this analysis.

A canonical what?

Since the meaning of Inbound can change, we need some other way to name the direction. My intuition is that we can probably use the most common origin and the most common destination with that directionRef on that day. Hopefully, that stays stable across time. I guess we’ll find out!

We can easily use window functions to find the first and last stop of each serviceJourneyId, operatingDate pair. The way this works is that we define a window, which has two parts:

• A partition, or group key. The window function gets to look at every row within the same partition and do some sort of aggregation.
• We can also use a clause to bound the size of the window, and give it an ordering.

Window functions are awesome! We get to do aggregations without having to throw away lots of rows, saving us lots of subqueries.

Let’s do a small demo. First, let’s show all the data from one bus journey on line 3:

%%sql
with choice as (
    from legs
    select operatingDate, serviceJourneyId
    where lineRef = 'ATB:Line:2_3' and operatingDate = '2024-01-01'
    limit 1
)
from choice join legs using(operatingDate, serviceJourneyId)
select directionRef, sequenceNr, start_time, from_stop, to_stop
order by sequenceNr;

We can tell that the origin is Dragvoll and the destination is Hallset. We can easily put that information on each row using a window function. Look ma, no group by!

%%sql
with choice as (
    from legs
    select operatingDate, serviceJourneyId
    where lineRef = 'ATB:Line:2_3' and operatingDate = '2024-01-01'
    limit 1
)
from choice join legs using(operatingDate, serviceJourneyId)
select
  -- this is old
  directionRef, sequenceNr, start_time, from_stop, to_stop,
  -- new column, window function!
  min_by(from_stop, sequenceNr) over (
    partition by (operatingDate, serviceJourneyId)
  ) as origin,
  -- also a window function
  max_by(to_stop, sequenceNr) over (
    partition by (operatingDate, serviceJourneyId)
  ) as destination
order by sequenceNr;

So that’s pretty neat!

We don’t really need window functions for this, we can do this with group by. But knowing about window functions will come in handy later!

In DuckDB, we have a qualify clause that we can put after where, which allows us to filter a row based on a window function. We can’t use where to filter on the result of a window function, because where is necessary in order find out which rows that are part of the window. The result of the window function can’t be known until after where has run! Many SQL dialects now support qualify, which is a super handy quality of life change. Without it, we would need to use a subquery or CTE.

Let’s make a table that maps from operatingDate, lineRef, directionRef to the most commonly used origin and destination pair for that combination.

%%sql
create or replace table route_name as
with counts as (
  from legs
  select
    -- This is the triple we want to name / map
    operatingDate,
    lineRef,
    directionRef,
    -- These are what we'll use for naming. Maybe they're stable over time?
    min_by(from_stop, sequenceNr) as origin,
    max_by(to_stop, sequenceNr) as destination,
    -- We'll use this to rank them, picking the most common pair of origin/destination
    -- as the name for the `directionRef` on this day
    count(*) as count
  group by all -- handy shortcut to group by whatever we didn't aggregate
)
from counts
select
  operatingDate,
  lineRef,
  directionRef,
  origin,
  destination,
  count
qualify
  count = max(count) over (partition by (operatingDate, lineRef, directionRef));

Let’s zoom in on June 2024 again, and check if this fixes our problem:

df = db.sql("""
from legs join route_name using(operatingDate, directionRef, lineRef)
select count(*) as count, directionRef,
    operatingDate,
    origin || ' to ' || destination as route_name
where
  ((from_stop = 'Studentersamfundet' and to_stop = 'Nidarosdomen')
   or (from_stop = 'Nidarosdomen' and to_stop = 'Studentersamfundet'))
  and (lineRef = 'ATB:Line:2_3'
       and operatingDate between '2024-06-01' and '2024-06-10')
group by all
order by operatingDate;
""").df()

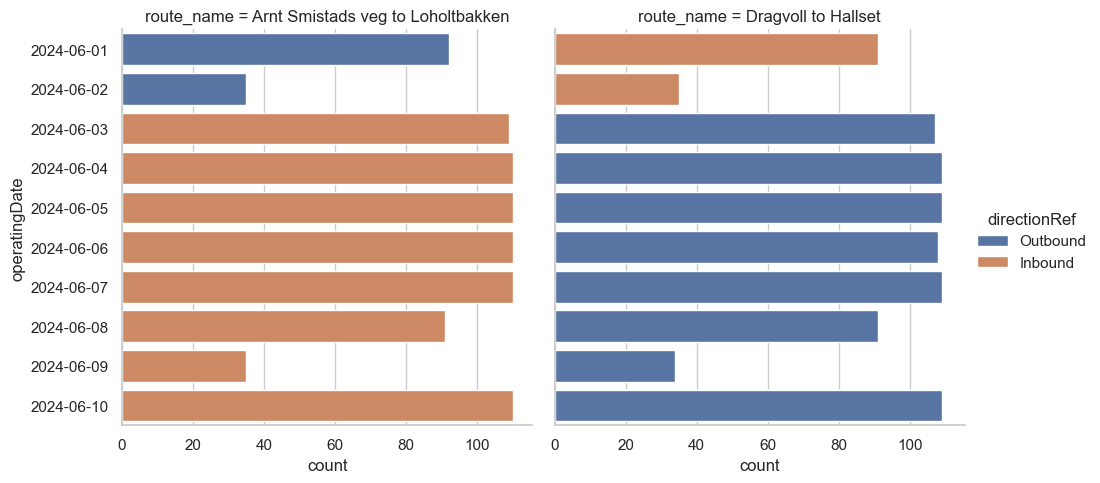

sns.catplot(
    df,
    y='operatingDate',
    x='count',
    hue='directionRef',
    col='route_name',
    kind='bar'
);

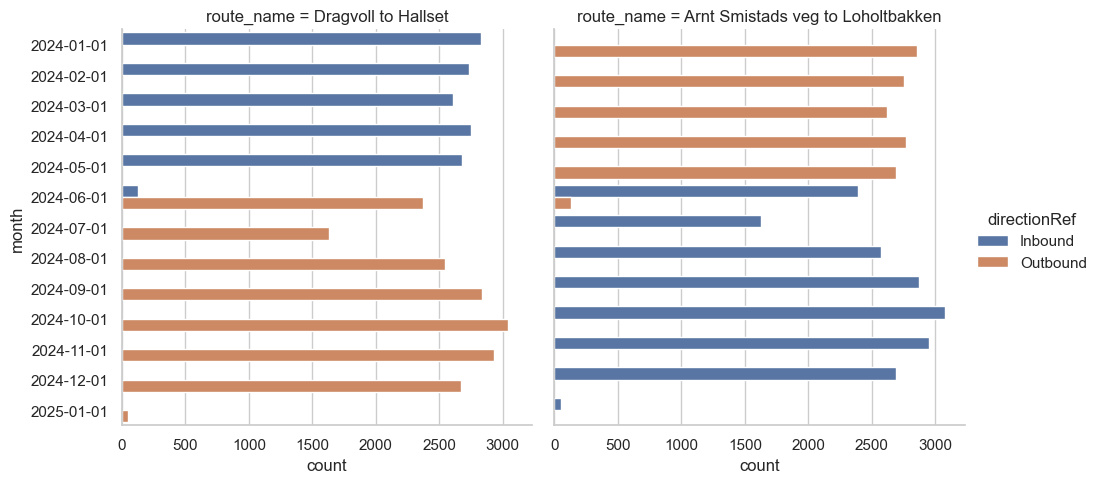

Huge success!

These stay stable even when the meaning of directionRef changes. Now let’s zoom back out:

df = db.sql("""
from legs join route_name using(operatingDate, directionRef, lineRef)
select count(*) as count, directionRef,
    date_trunc('month', operatingDate) as month,
    origin || ' to ' || destination as route_name
where
  ((from_stop = 'Studentersamfundet' and to_stop = 'Nidarosdomen')
   or (from_stop = 'Nidarosdomen' and to_stop = 'Studentersamfundet'))
  and lineRef = 'ATB:Line:2_3'
group by all
order by month;
""").df()

sns.catplot(
    df,
    y='operatingDate',
    x='count',
    hue='directionRef',
    col='route_name',
    kind='bar'
);

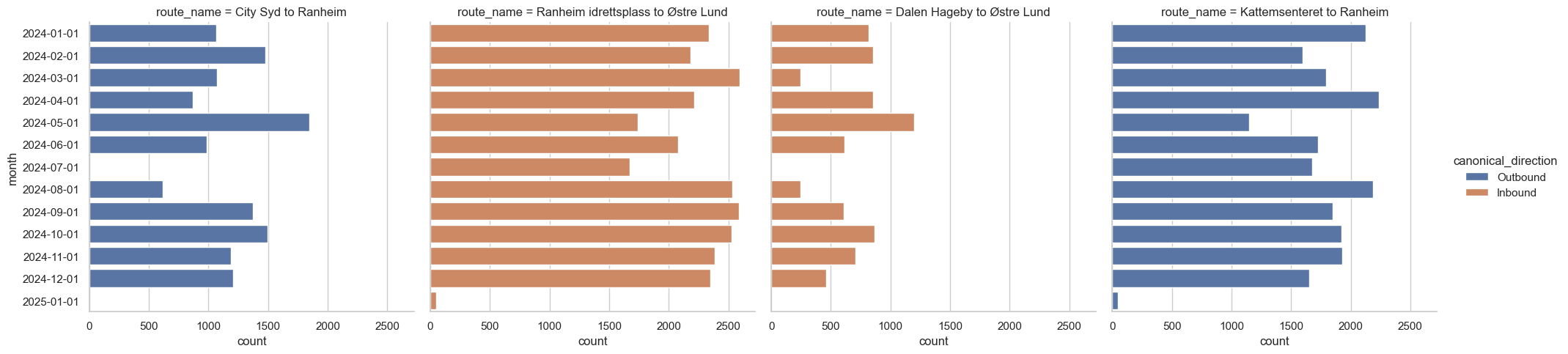

This appears to be stable all year. Great news! We’re not entirely home-free, though.

Let me show you what I mean by sampling another lineRef:

df = db.sql("""
from legs join route_name using(operatingDate, directionRef, lineRef)
select count(*) as count, directionRef,
   date_trunc('month', operatingDate) as month,
   origin || ' to ' || destination as route_name
where
  ((from_stop = 'Studentersamfundet' and to_stop = 'Nidarosdomen')
    or (from_stop = 'Nidarosdomen' and to_stop = 'Studentersamfundet'))
  and lineRef = 'ATB:Line:2_1')
group by all
order by month;
""").df()

sns.catplot(
    df,
    y='operatingDate',
    x='count',
    hue='directionRef',
    col='route_name',
    kind='bar'
);

Huge disappointment!

Oh no, this one has more variations!

Fortunately, we can fix this too! Perhaps not perfectly, but something that should be close enough.

What should be sufficient is to set a permanent directionRef for each route name. We’ll use the first directionRef we ever observed for that route. This is just a minor tweak to our route_name table from above:

%%sql
create or replace table route_name as
with counts as (
  from legs
  select
    operatingDate,
    lineRef,
    directionRef,
    min_by(from_stop, sequenceNr) as origin,
    max_by(to_stop, sequenceNr) as destination,
    count(*) as count
  group by all
)
from counts
select
  operatingDate,
  lineRef,
  directionRef,
  -- Changed this! We'll propagate the first directionRef seen
  -- for this line/origin/destination to all of eternity
  min_by(directionRef, operatingDate) over (
      partition by (lineRef, origin, destination)
  ) as canonical_direction,
  origin,
  destination,
  count
qualify
  count = max(count) over (partition by (operatingDate, lineRef, directionRef))

Did we conquer line 1 now?

Let’s check whether we can use the new canonical_direction to separate these now:

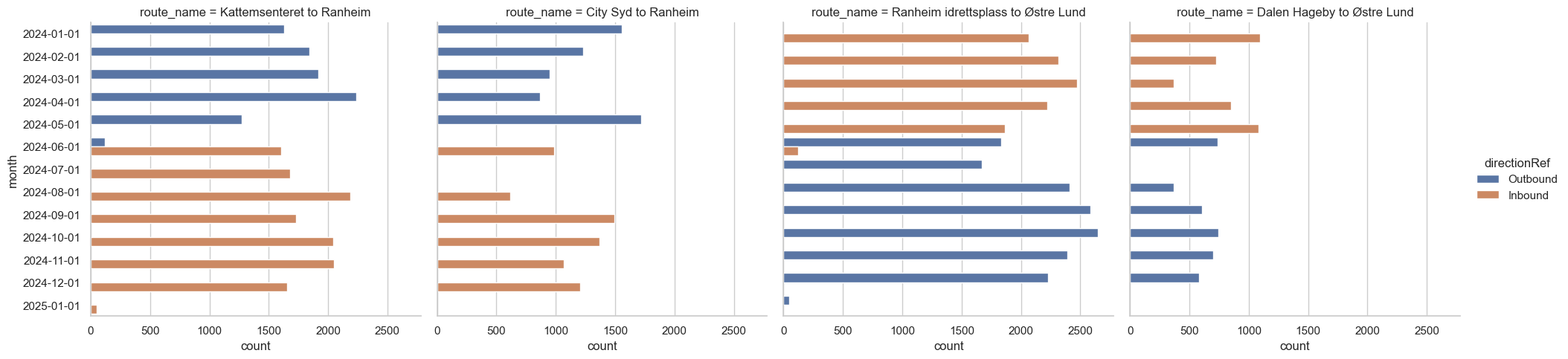

df = db.sql("""
from legs join route_name using(operatingDate, directionRef, lineRef)
select count(*) as count,
    date_trunc('month', operatingDate) as month,
    canonical_direction, origin || ' to ' || destination as route_name
where
  ((from_stop = 'Studentersamfundet' and to_stop = 'Nidarosdomen')
   or (from_stop = 'Nidarosdomen' and to_stop = 'Studentersamfundet'))
  and lineRef = 'ATB:Line:2_1'
group by all
order by month;
""").df()

sns.catplot(
    df,
    y='month',
    x='count',
    hue='canonical_direction',
    col='route_name',
    kind='bar'
);

Looks pretty good!

This seems to fix our main problem. This notebook wouldn’t be complete without taking a look at what kind of difference this makes, though. Let’s do some shallow plotting so we can compare the mean delay at the latest stop in each journey by directionRef, and by canonical_direction.

df = db.sql("""
with journey_delay as (
    from legs
    select
        operatingDate,
        serviceJourneyId,
        directionRef,
        lineRef,
        max_by(delay, sequenceNr) as delay
    where operatingDate between '2024-04-15' and '2024-10-15'
    group by all
), regular as (
    select
        operatingDate,
        quantile_disc(delay, .75) as delay,
        directionRef,
        'directionRef' as kind
    from journey_delay
    where lineRef = 'ATB:Line:2_3'
    group by all
    order by operatingDate, directionRef
), canonical as (
    select
        operatingDate,
        quantile_disc(delay, .75) as delay,
        route_name.canonical_direction as directionRef,
        'canonical' as kind
    from journey_delay join route_name using(operatingDate, lineRef, directionRef)
    where lineRef = 'ATB:Line:2_3'
    group by all
    order by operatingDate, directionRef
)
select * from regular
union all
select * from canonical
""").df()

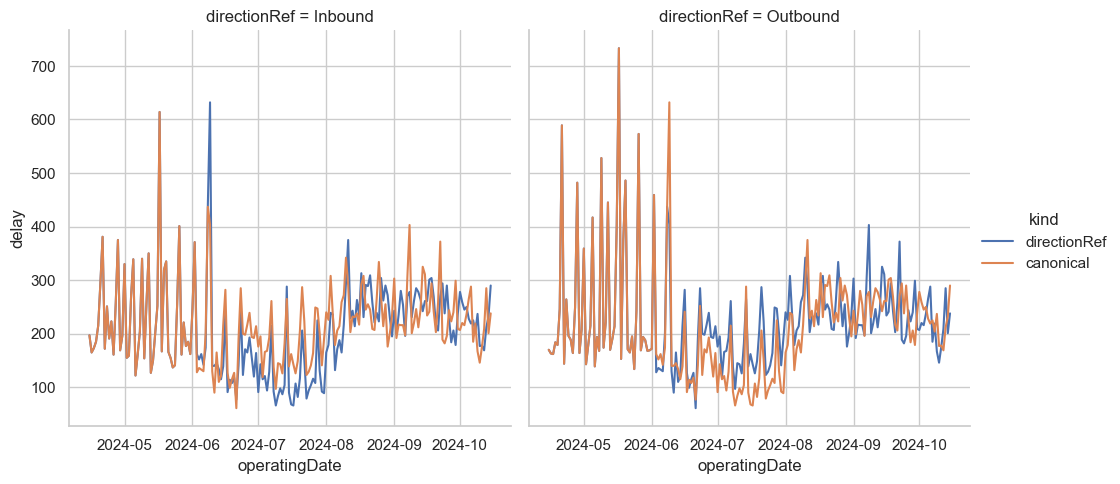

sns.relplot(
    df,
    x='operatingDate',
    y='delay',
    hue='kind',
    col='directionRef',
    kind='line'
);

Makes a difference! I’ll make a job that keeps something like the route_name table up to date so that I can keep track of the “true” direction of a line for my analysis. Should be fun to see if this works with all ~500 million legs in the main data set! I’m sure it’ll be fine; DuckDB chews through this notebook in just a few seconds after the initial download is done.

Thanks for reading!
